Oddball threads
If you bring us the old part, we can usually match it.
IBC threads are weird. There's a European standard (S60x6), an American coarse (S56), plus a dozen proprietary and legacy threads that show up once a month. Our triage bench has a rack of reference threads going back to 2002 — drop by with the part and we'll match it.
Ask about a specific part →Thread compatibility chart
IBC fill caps and adapters use several thread standards that are not interchangeable. This chart helps you identify what you have and what you need:
| Thread standard | OD | Pitch | TPI equiv. | Common on | We stock? |
|---|
| S60x6 (DIN 61) | 60 mm | 6 mm | ~4.2 | Schutz, Mauser, most EU | Yes |
| S56x4 (coarse) | 56 mm | 4 mm | ~6.4 | Older US / Hoover, some Asian | Yes |
| S70x6 | 70 mm | 6 mm | ~4.2 | Some Schutz 330-gal | Limited |
| S75x6 | 75 mm | 6 mm | ~4.2 | Larger Mauser, some specialty | By request |
| 2" NPT (tapered) | 2.375" | 11.5 TPI | 11.5 | Bottom valve (all IBCs) | Yes |
| 2" BSP (parallel) | 2.347" | 11 TPI | 11 | Some UK/EU imports | Limited |
| DN50 tri-clamp | 64 mm OD | N/A (clamp) | N/A | Stainless sanitary IBCs | Yes |
S60x6 and S56x4 are NOT interchangeable. An S56 cap will feel like it starts to thread onto an S60 neck but will cross-thread and strip. Always verify before torquing.
Gasket material guide
Gaskets are the most-replaced part on any IBC. Choosing the right material depends on what you are storing and the temperature range:
- EPDM (ethylene propylene diene monomer): Best all-around choice for water, food products, dilute acids/bases, and steam. Temperature range: -40°F to 300°F. Not suitable for petroleum-based products or concentrated solvents. This is what we install by default on food-grade and standard totes.
- Viton (FKM fluoroelastomer): Excellent chemical resistance — handles fuels, oils, solvents, and most acids. Temperature range: -15°F to 400°F. More expensive than EPDM but necessary for chemical and industrial applications. Default on our caged-steel totes.
- PTFE (Teflon): Universal chemical resistance — compatible with virtually everything except molten alkali metals. Temperature range: -350°F to 500°F. Used on stainless tri-clamp connections and as an overlay on softer gaskets for aggressive chemistry.
- Silicone: Excellent for high-temperature applications (up to 500°F) and FDA-compliant food contact. Poor resistance to solvents, fuels, and strong acids. Common on pharma stainless IBCs for CIP/SIP applications.
- Buna-N (nitrile): Good for petroleum products, fuels, and oils. Temperature range: -40°F to 250°F. We stock these for specialty applications but rarely install them as a default.
Valve flow rates

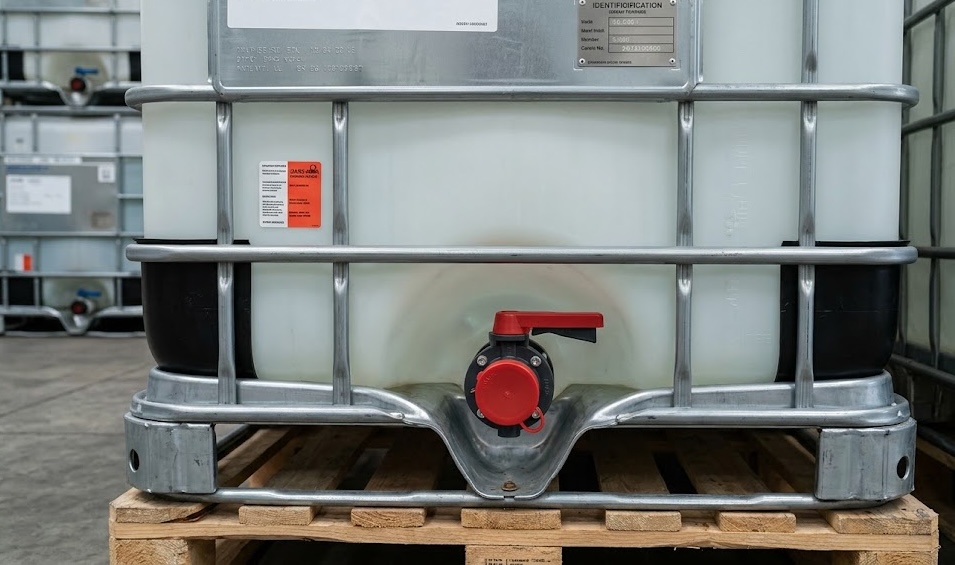

The bottom valve is the bottleneck (literally) for how fast you can drain or fill an IBC. Here are typical flow rates for the valve types we stock:
- 2" NPT ball valve (standard): 150 – 200 GPM wide open, gravity drain from full tote. Actual flow depends on head height — a full 275-gal tote has about 38" of head, producing roughly 170 GPM at the start and slowing as the level drops.
- 2" butterfly valve: 180 – 250 GPM. Higher flow than ball valve due to larger bore, but less common on IBCs. We stock these as aftermarket upgrades for customers who need faster drain times.
- 2" camlock quick-disconnect: Flow rate depends on the connected hose diameter. With 2" hose: 150 – 200 GPM. With 1.5" hose: 90 – 120 GPM. Always match the hose to the valve — a 2" valve with a 3/4" garden hose is a waste of the valve's capacity.
- Tri-clamp (stainless): 200 – 300 GPM depending on size (1.5" or 2"). Sanitary connections have smooth bores with no internal obstructions.
Installation tips (summary)
- Replacing a ball valve: Close the valve. Place a bucket under the outlet. Unscrew the old valve counterclockwise (2" NPT). Apply 3–4 wraps of PTFE tape clockwise to the male threads of the new valve. Thread on hand-tight, then 1.5–2 additional turns with a wrench. Do not over-tighten — the HDPE threads are softer than the metal valve body.
- Replacing a fill cap: Unscrew counterclockwise. Inspect the O-ring or gasket on the bottle neck (not the cap). Replace if compressed, cracked, or missing. Thread new cap clockwise — snug plus 1/4 turn. Do not use tools — hand-tight with a bung wrench is sufficient.
- Adding a camlock adapter: Thread the male camlock adapter (Type A) into the ball valve outlet. Apply PTFE tape. Connect the female camlock (Type C or D) on your hose. Test for leaks at low flow before opening the valve fully.
- Converting NPT to garden hose: Use a 2" NPT × 3/4" GHT reducer. These are available in brass or plastic. Flow rate will be limited by the 3/4" hose — roughly 8–15 GPM depending on head pressure.
Bulk accessory pricing
For customers who maintain fleets or service multiple IBCs, we offer bulk pricing on the most common replacement parts:
- 10+ ball valves: 15% off posted per-unit price
- 25+ gaskets (any material): 20% off, mixed materials OK
- 50+ fill caps: 25% off, either S60x6 or S56
- 100+ dust caps: $1.50 each (vs. $2–$4 per unit)
- Mixed accessory kits: We can assemble a "maintenance kit" with valve, gasket set, fill cap, dust cap, and PTFE tape — $38 per kit in quantities of 10+
